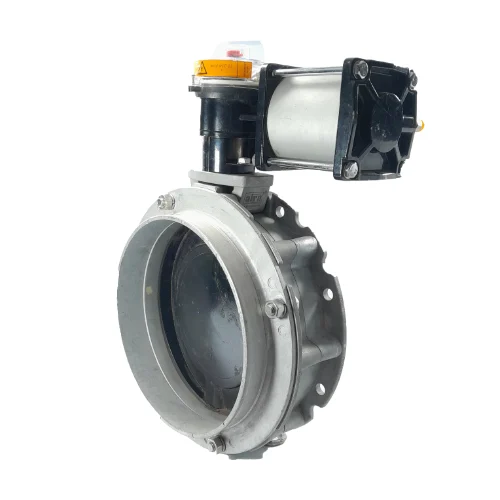

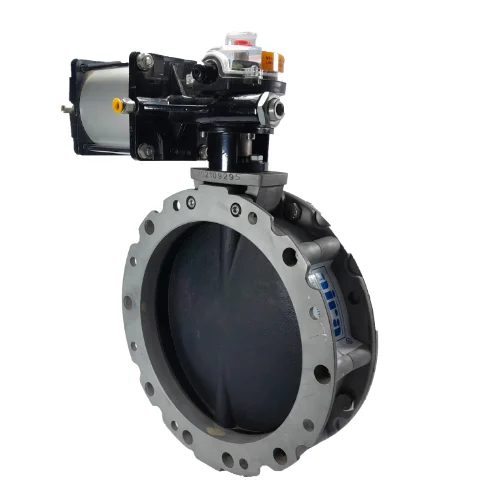

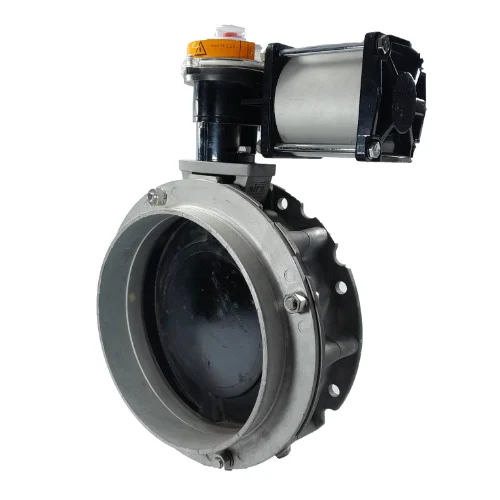

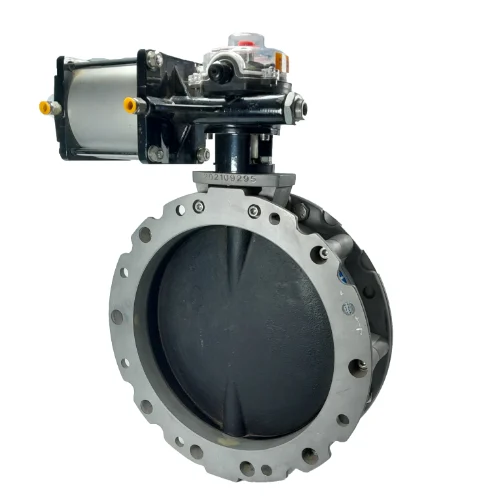

Pneumatic Butterfly Valve for Cement with One Side Flange and One Side Collar

Benefits of having double flange butterfly valves:

1. Having double flanges makes it easier to install and replace.
2. Economical in pricing as it reduces the cost to buy and weld additional flanges

Why do Cement Industries use butterfly valves?

Processing plants use double flanged butterfly valves for intercepting gravity-fed or pneumatically conveyed dry materials. They install these valves beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. The special design and engineering materials used in these valves make them a particularly cost-effective yet efficient solution.

Mechanism of Pneumatic Actuated Butterfly Valve.

The pneumatic Butterfly valve works on a simple mechanism and is easy to use so it has low maintenance. These valves have a disc connected to a center rod that rotates the disc quarterly to open and close the valve. They are fitted in the middle of the fluid flow. A metal disc called butterfly will rotate a quarter turn to allow an indefinite fluid flow. And consequently the slow opening valve will reduce the flow and turning the disc will stop the flow completely.  This valve is operated by pressurized air which is controlled by a pneumatic actuator fixed on it. So there is no need of any personal to operate the valve. The pneumatic actuator operates this valve fast and easily at a lower cost and with greater safety.

Quality and Testing

We supply products of only high quality graded materials and who also follow API standard criteria: API 609 Certificate for Butterfly Valve.

Where to Use Pneumatic Actuated Butterfly Valves

People generally use Pneumatic Actuator Butterfly Valves for liquid and slurry materials. These valves are very popular in the valve industry because of their easy-to-use and simple mechanism. Pneumatic Butterfly Valves are very useful for controlling highly inflammable liquids, such as petro-chemicals, oil, and gas. They operate using a pneumatic mechanism, which allows for fast functionality and keeps them safe from fire and electric short circuits. As a result, they are electricity-efficient valves with the lowest cost.

Applications

Diverse industries and applications use butterfly valves, such as pharmaceuticals, chemicals and oil, food, water supply, wastewater treatment, fire protection, gas supply, fuel handling, and sanitary fittings. People use butterfly valves for water as control valves to manage water flow. These valves come in various sizes and are suitable for handling slurries and liquids that contain relatively large amounts of solids at low pressures. People use stainless steel butterfly valves in corrosive and marine environmental applications because the stainless steel material is highly durable and resistant to corrosion.

View Catalogue for this valve here.

FAQs – Pneumatic Butterfly Valve for Cement with One Side Flange and One Side Collar:

1. Why is a pneumatic butterfly valve preferred for cement and powder handling applications?
A pneumatic butterfly valve provides fast and reliable on-off control, making it ideal for handling abrasive materials like cement while minimizing material buildup and leakage.

2. How does the one side flange and one side collar design benefit a pneumatic butterfly valve?
This design allows flexible installation, where the flange ensures secure pipeline mounting and the collar side enables easy connection to hoppers, silos, or flexible ducts.

3. Can a pneumatic butterfly valve handle frequent operation in cement plants?
Yes, a pneumatic butterfly valve is designed for high-cycle operations, ensuring consistent performance even in continuous and demanding cement processing environments.

4. Is a pneumatic butterfly valve suitable for controlling bulk material discharge?
A pneumatic butterfly valve offers precise open-close control, making it suitable for regulating bulk material discharge from silos and conveyors.

5. Does a pneumatic butterfly valve help reduce manual intervention in dusty environments?
Yes, automated actuation in a pneumatic butterfly valve eliminates the need for manual operation, improving safety and efficiency in dusty cement handling areas.
