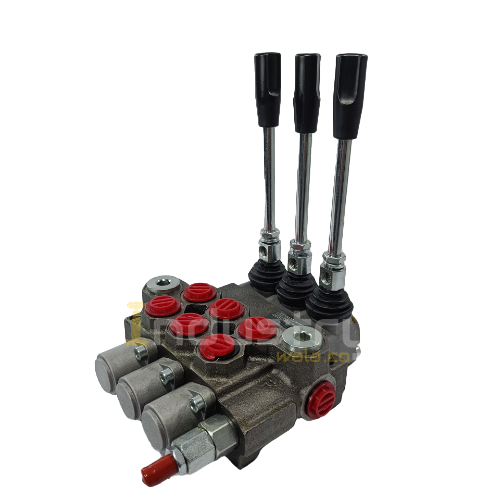

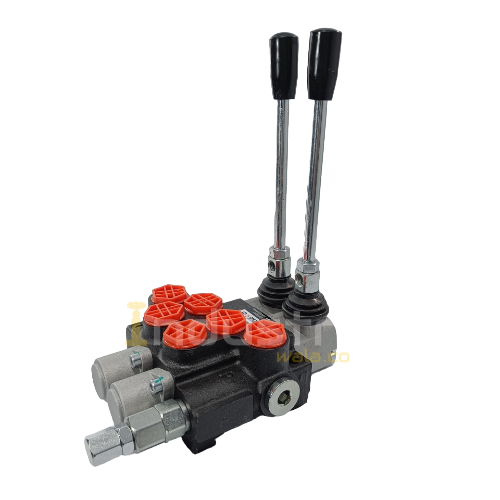

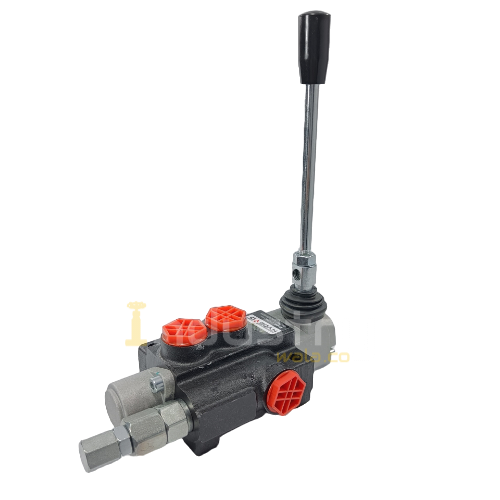

Hydraulic Lever Operated Monoblock Direction Control Valve P-40 (45 LPM) With Built in Check Valve and Pressure Relief Valve
Sale!
Hydraulic Lever Operated Monoblock Direction Control Valve P-40 (45 LPM) With Built in Check Valve and Pressure Relief Valve
₹2,069 – ₹8,937
Comes with Built in Check Valve and Pressure Relief Valve
Brand : Torque / Hydevo
Mounting : Thread Type of size 3/4″
Nominal Flow : 40 ltr/min
Maximum Pressure : 315KG
Product Information
Description
Additional information
Reviews
Description
Common Uses:
- Operate hydraulic cylinders (Double-Acting or Single-Acting)
- Operate hydraulic motors (“D” Spool Required)
- Install rear remotes on a tractor
Benefits:
- Low weight, small dimensions
- Operating pressure up to 315 bar
- Excellent price/performance ratio
- Elimination of potential leakage between sections
- Easy maintenance
- All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
- Used for open center systems (Pump to Tank Flow) – closed center option available
- SAE O-Ring ports ensure solid seal and prevent blockages
- Vertical or horizontal handle mount
- Adjustable Relief Valve Range: 1500 to 3625 PSI
- Preset Pressure Relief: 2610 PSI
