1RCE Closed Body Radial Piston Pump For Upto 350Bar Pressure and 13.5LPM
Ships within 24Hrs
Temperature Range : -20C to +80C
Viscosity Range : 10cSt to 100cSt
Model:- 1RCE 3C
Number of pumping Elements : 3
Connection : Suction Port- 1/2″ Female | Delivery Port- 3/8″ Female
Speed Range : 300 to 2000 RPM
Max Pressure : 350 Bar
Geometric Displacement : 2.7cm3
Flow : 3.7LPM
Model- 1RCE 5C
Number of pumping Elements : 5
Connection : Suction Port- 1/2″ Female | Delivery Port- 3/8″ Female
Max Pressure : 350 Bar
Geometric Displacement : 4.5cm3
Flow : 6.2LPM
Model- 1RCE 5D
Number of pumping Elements : 5
Connection : Suction Port- 1/2″ Female | Delivery Port- 3/8″ Female
Max Pressure : 300 Bar
Geometric Displacement : 5.3cm3
Flow : 7.2LPM
Model- 1RCE 5E
Connection : Suction Port- 1/2″ Female | Delivery Port- 3/8″ Female
Max Pressure : 250 Bar
Geometric Displacement : 6.15cm3
Flow : 8.4LPM
Model- 1RCE 5F
Number of pumping Elements : 5
Connection : Suction Port- 1/2″ Female | Delivery Port- 3/8″ Female
Max Pressure : 200 Bar
Geometric Displacement : 7.05cm3
Flow : 9.6LPM
Model- 1RCE 7C
Number of pumping Elements : 7
Connection : Suction Port- 1/2″ Female | Delivery Port- 3/8″ Female
Max Pressure : 350 Bar
Geometric Displacement : 6.3cm3
Flow : 8.6LPM
Model- 1RCE 7D
Number of pumping Elements : 7
Connection : Suction Port- 1/2″ Female | Delivery Port- 3/8″ Female
Max Pressure : 300 Bar
Geometric Displacement : 7.42cm3
Flow : 10.1LPM
Model- 1RCE 7E
Number of pumping Elements : 7
Connection : Suction Port- 1/2″ Female | Delivery Port- 3/8″ Female
Max Pressure : 250 Bar
Geometric Displacement : 8.61cm3
Flow : 11.7LPM
Model- 1RCE 7F
Number of pumping Elements : 7
Connection : Suction Port- 1/2″ Female | Delivery Port- 3/8″ Female
Max Pressure : 200 Bar
Geometric Displacement : 9.87cm3
Flow : 13.5LPM
Price range: ₹7,485 through ₹12,630 Exclusive GST

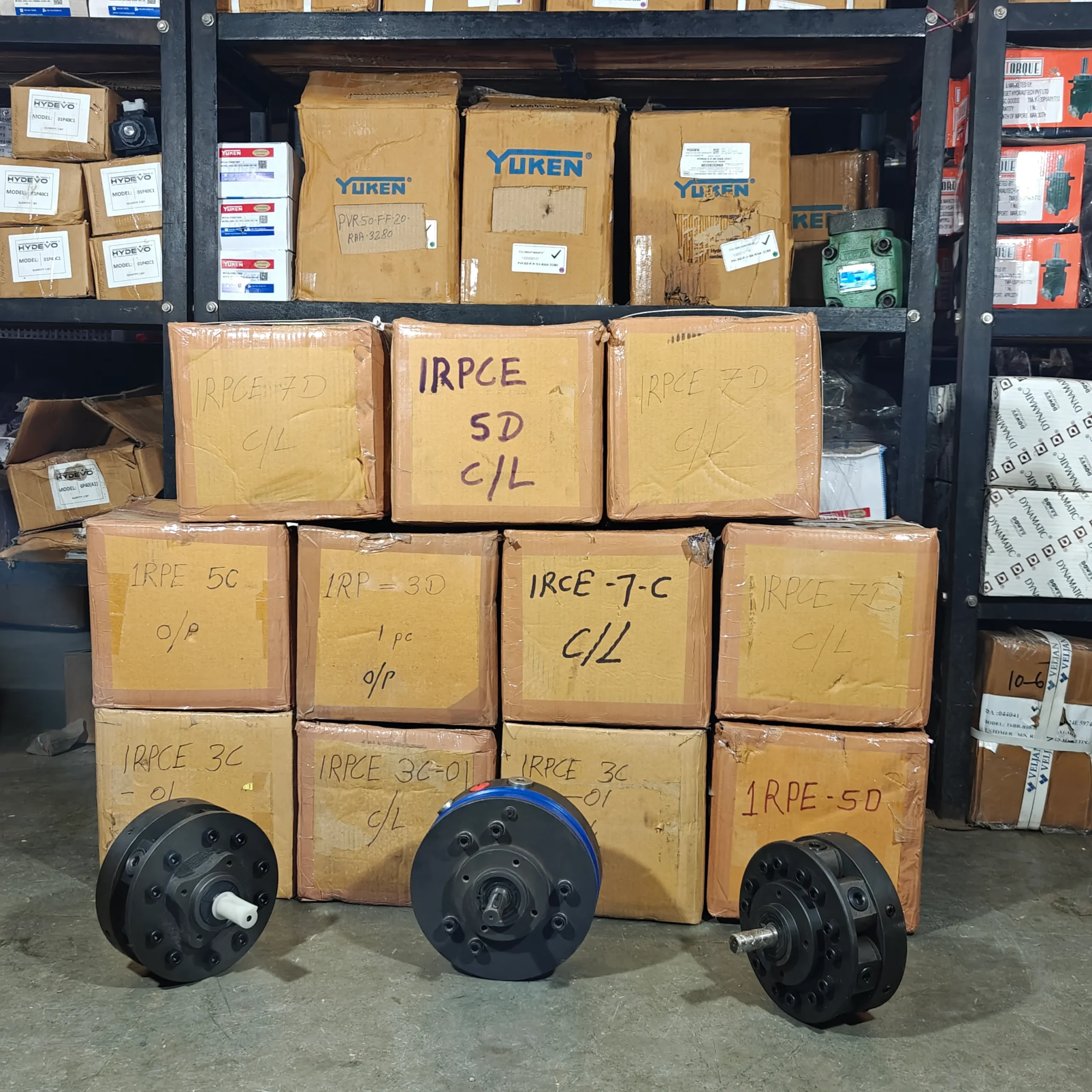

Model 1R**** are small, low weight, rugged oil immersed type Radial
Piston Pump with 2, 3, 5 or 7 pumping elements. These pumps are
valve controlled and have no restriction on direction of rotation.
Piston Pump with model 1RE*** have extension shaft for through drive and
are available with extension bracket assembly for coupling a low
pressure pump having standard flange as per ISO 3019/1.
These are available with 28 displacements and 7 pressure ratings.
These pumps give fixed output per revolution of the shaft.
