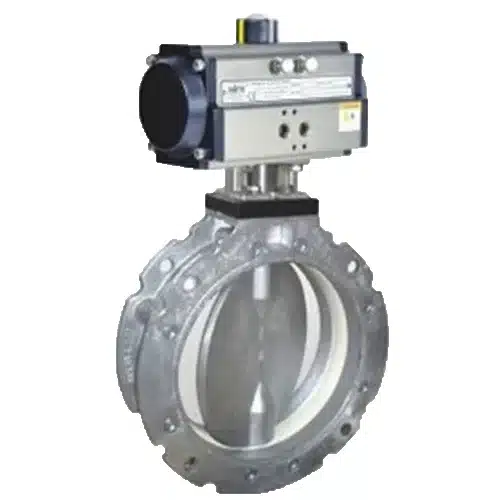

Pneumatic Actuator Operated Butterfly Valve For Cement with Both Side Flange Aira CMD 4″ to 12″

Why are butterfly valves used in Cement Industries?

Butterfly Valve for cement are used in all types of powder and granular material processing plants where interception of gravity-fed or pneumatically conveyed dry materials is required. They are fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design and engineering materials used, they represent a particularly cost-effective yet most efficient solution.

Mechanism of Pneumatic Actuated Butterfly Valve

The pneumatic Butterfly valve works on a simple mechanism and is easy to use so it has low maintenance, these valves are fitted in mid of fluid flow. There is a disc connected to a center rod, which rotates the disc quarterly to pass through to open and close. This metal disc called Butterfly rotates a quarter turn to allow fluid to pass indefinitely. The slow opening valve will reduce the flow, and turning the disc to close the valve and flow. This valve is operated by pressurized air which is controlled by a pneumatic actuator fixed on it. . So there is no need for any personal to operate the valve. Pneumatic actuator operates the valve rapidly, efficiently and in a very safe manner.

Quality and Testing

We supply products of only high quality graded materials and who also follow API standard criteria: API 609 Certificate for Butterfly Valve.

Where to Use Pneumatic Actuated Butterfly Valves

Pneumatic Actuator Butterfly Valves are generally used for liquid and slurry materials. These are very popular in the valve industry because of their easy to use and simple mechanism. Pneumatic Butterfly Valves are very useful to control highly inflammable liquids. Liquids like petro-chemicals, Oil, and Gas. It is operated by Pneumatic actuator, which allows fast functionality and safe from fire and electric short circuits. So it is an electricity efficient operated valve with the lowest cost.

Applications

Butterfly valves are used in diverse industries and applications such as pharmaceutical, chemical and oil, food, water supply, wastewater treatment, fire protection, gas supply, fuel handling, and sanitary fittings. Butterfly valves for water are used as control valves in pipelines to shut off water flow. These valves are available in huge sizes and are suitable for handling slurries and liquids with relatively large amounts of solids at low pressures. Stainless steel butterfly valves are used in corrosive and marine environmental applications. Stainless steel material is highly durable and resistant to corrosion.

View Catalogue for this valve here.

FAQs – Pneumatic Actuator Operated Butterfly Valve For Cement with Both Side Flange (Aira CMD 4″ to 12″):

1. How does a pneumatic actuator improve efficiency when operating a butterfly valve in cement handling applications?
A butterfly valve with pneumatic actuator ensures fast, automated opening and closing, providing consistent flow control needed for handling cement, powders, and abrasive materials.

2. Is this butterfly valve suitable for high-dust and abrasive cement industry environments?
Yes, the butterfly valve with pneumatic actuator is designed for harsh cement environments, offering reliable sealing and smooth operation even with high dust loads and abrasive media.

3. Does the flange design enhance stability during operation in cement transfer systems?
Absolutely. The butterfly valve with pneumatic actuator comes with both-side flange mounting, ensuring strong, vibration-resistant installation suitable for heavy-duty cement pipelines.

4. Can the pneumatic actuator help reduce manual labor and improve safety during cement flow control?
Yes, the butterfly valve with pneumatic actuator eliminates manual handling by offering remote and automated control, increasing safety in dusty or hazardous cement-processing areas.

5. Is the valve compatible with large pipeline sizes commonly used in cement plants?
Yes, the butterfly valve with pneumatic actuator is available in 4″ to 12″ sizes, making it compatible with standard cement plant pipelines and bulk material transfer systems.
