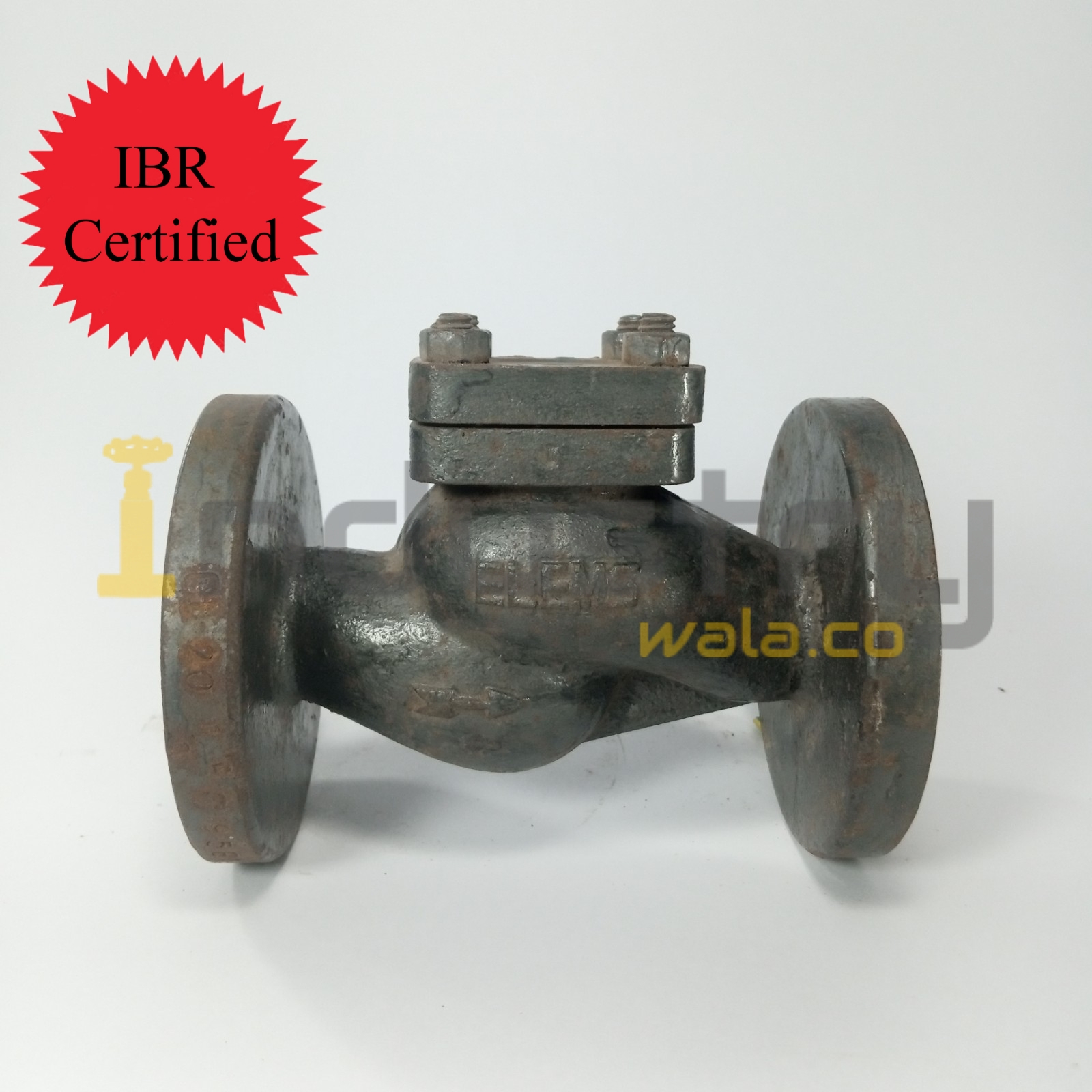

Cast Iron IBR Certified Horizontal Lift Check Valve PN16 Flange End
IBR Certified
Each valve comes with individual IBR certificate
Brand: Elems / Quinn
Flanges as per BS:5152 (Table H)
Hydraulic tested to 370 PSI (26Kg/cm2)
Seat tested to 230 PSI (16Kg/cm2)
Price range: ₹1,805 through ₹11,336 Exclusive GST
What is Lift Check Valve ?
by Editorial Staff
Check valves are designed to prevent the reversal of flow in a piping system. These valves are activated by the flowing material in the pipeline.
The pressure of the fluid passing through the system opens the valve, while any reversal of flow will close the valve. Closure is accomplished by the weight of the check mechanism, by back pressure, by a spring, or by a combination of these means. The general types of check valves are swing, tilting-disk, piston, butterfly, and stop.
Lift Check Valve
A lift check valve is commonly used in piping systems in which globe valves are being used as a flow control valve. They have similar seating arrangements as globe valves.
Lift check valves are suitable for installation in horizontal or vertical lines with upward flow.
They are recommended for use with steam, air, gas, water, and on vapor lines with high flow velocities.
