What Does Globe Valve Mean?

A Globe Valve regulates flow in a pipeline. It is used to control or stop the flow of liquid or gas through a pipe. Globe valves are named for their spherical body shape with the two halves of the body being separated by an internal baffle.

Although these valves exhibit slightly higher pressure drops than gate/ball valves, they may be used where the pressure drop through the valve is not a controlling factor.

Globe valves are also known as throttle valves.

Globe valves are primarily designed to stop, start and regulate flow. It is comprised of a movable disk-type element and a stationary ring seat in a generally spherical body. The seat of a globe valve is in the middle of and parallel to the pipe, and the opening in the seat is closed off with a disk or plug. Globe valves can be structured to handle flow in either direction.

The most common application of the globe valve is a standard water faucet. When the handle is turned, a disc is lowered or raised. Thereby, when the disc is fully lowered, the water supply is shut off. When the disc is fully raised, the water flow is at its maximum rate. In large industrial applications, a globe valve may be sealed using an electrical, pneumatic, or hydraulic actuator instead of a manual handle.

The baffle inside a globe valve causes the product to divert its direction to move through the baffle. This angled movement means that the product cannot flow as freely and causes a pressure drop after the valve. Globe valves are generally unsuitable for slurries or thicker substances that can be impeded by the baffle.

Check out our range of non-IBR valves here!

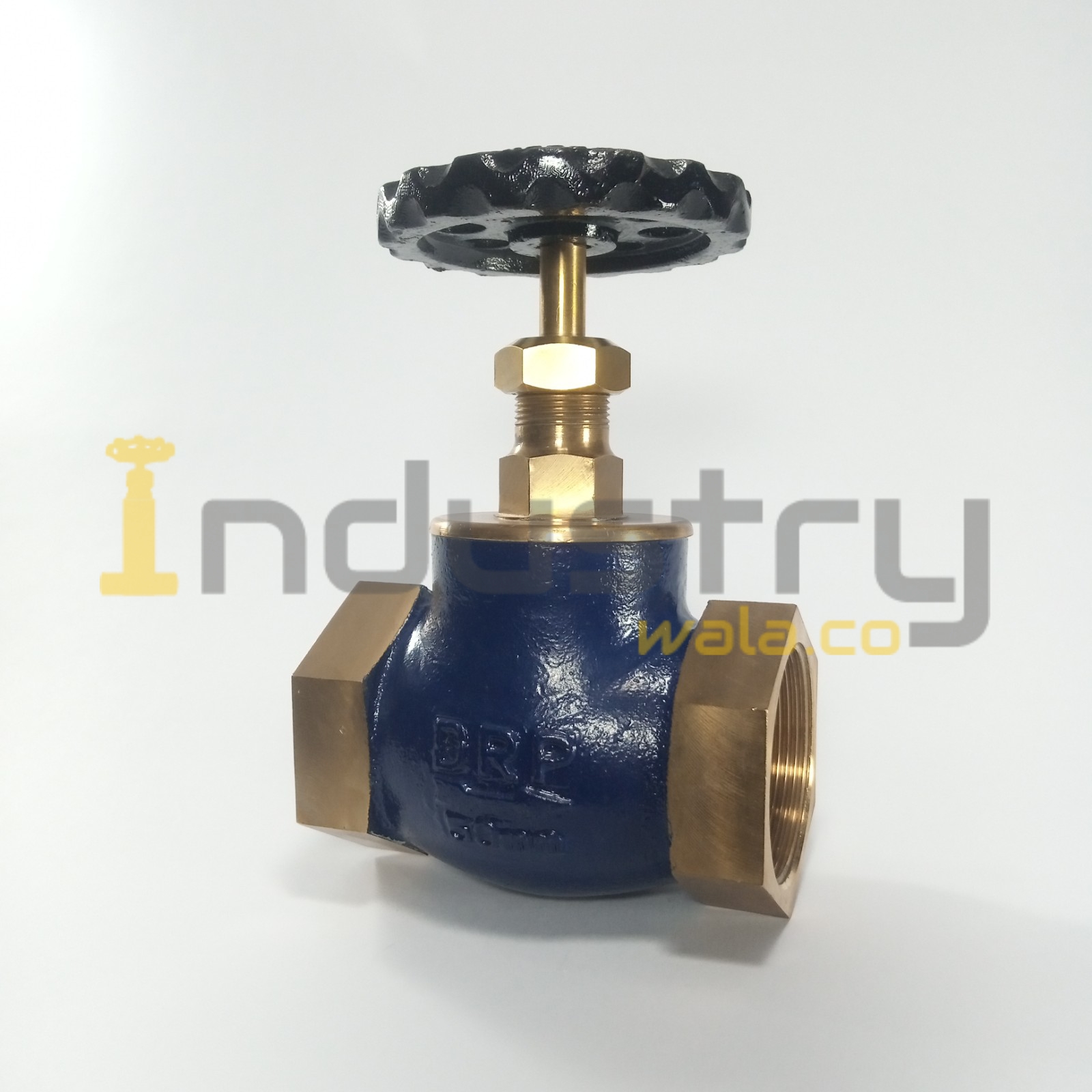

FAQs – Gun Metal / Brass Globe Valve ISI Marked Screwed / Flange End

What makes a non IBR boiler compatible with a Gun Metal / Brass Globe Valve?
A non IBR boiler can efficiently use a Gun Metal / Brass Globe Valve due to its durable construction and precise flow control, ensuring safe operation in industrial steam and water applications.

Can a Gun Metal / Brass Globe Valve handle high-pressure conditions in a non IBR boiler?
Yes, this Gun Metal / Brass Globe Valve is designed to withstand high-pressure conditions, making it reliable and safe for non IBR boiler systems in various industrial setups.

Is maintenance easy for a Gun Metal / Brass Globe Valve installed in a non IBR boiler?
Absolutely, the Gun Metal / Brass Globe Valve offers easy access for inspection and maintenance, ensuring smooth operation and long-term reliability in a non IBR boiler.

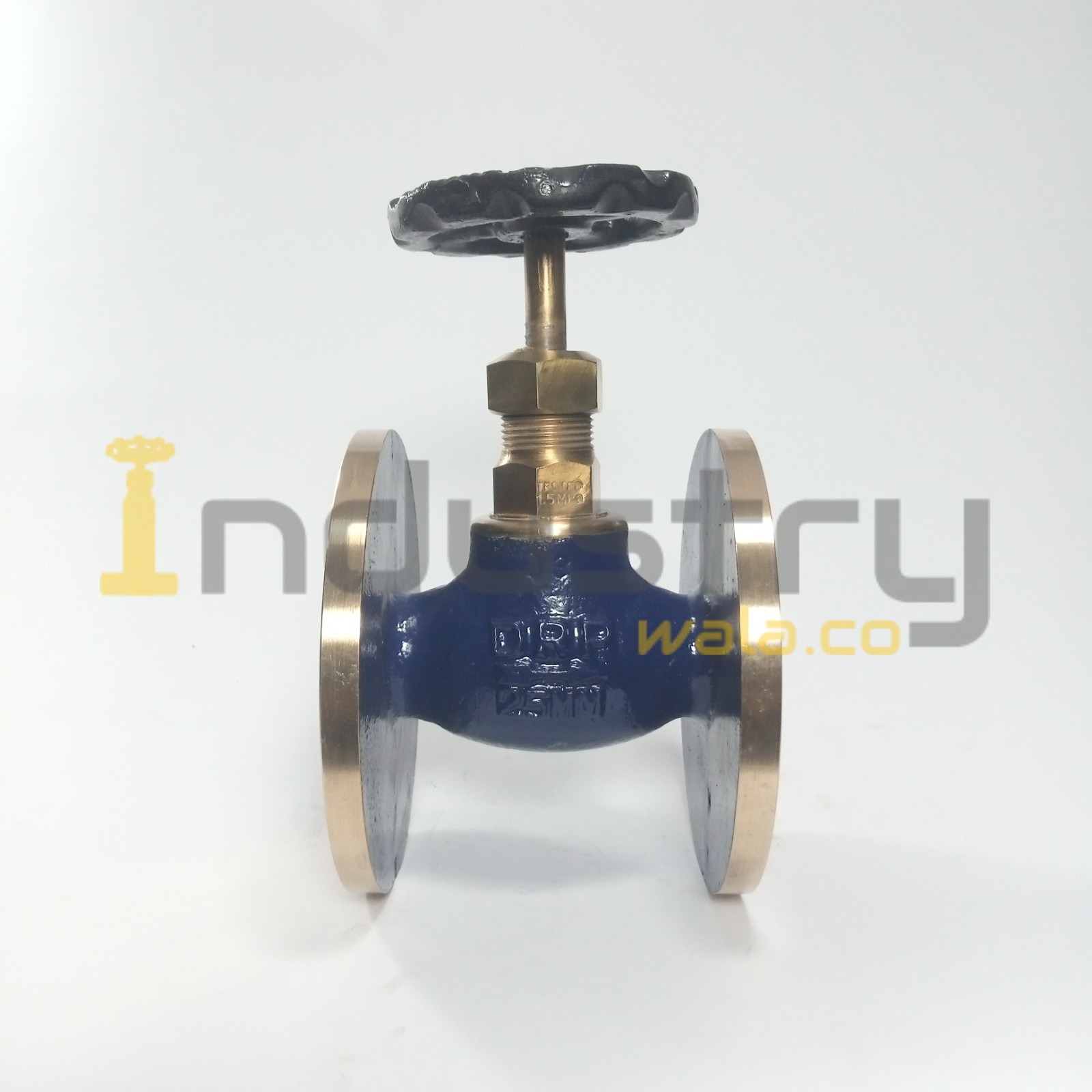

How does the screwed or flange end of the Gun Metal / Brass Globe Valve benefit a non IBR boiler setup?
The screwed or flange end connection of the Gun Metal / Brass Globe Valve provides secure installation and leak-free performance, making it ideal for non IBR boiler applications where safety and efficiency are crucial.
