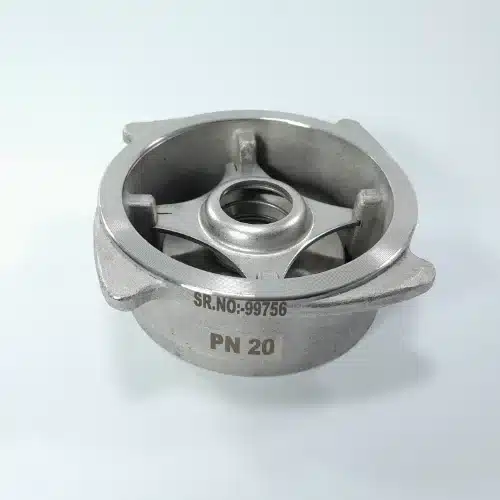

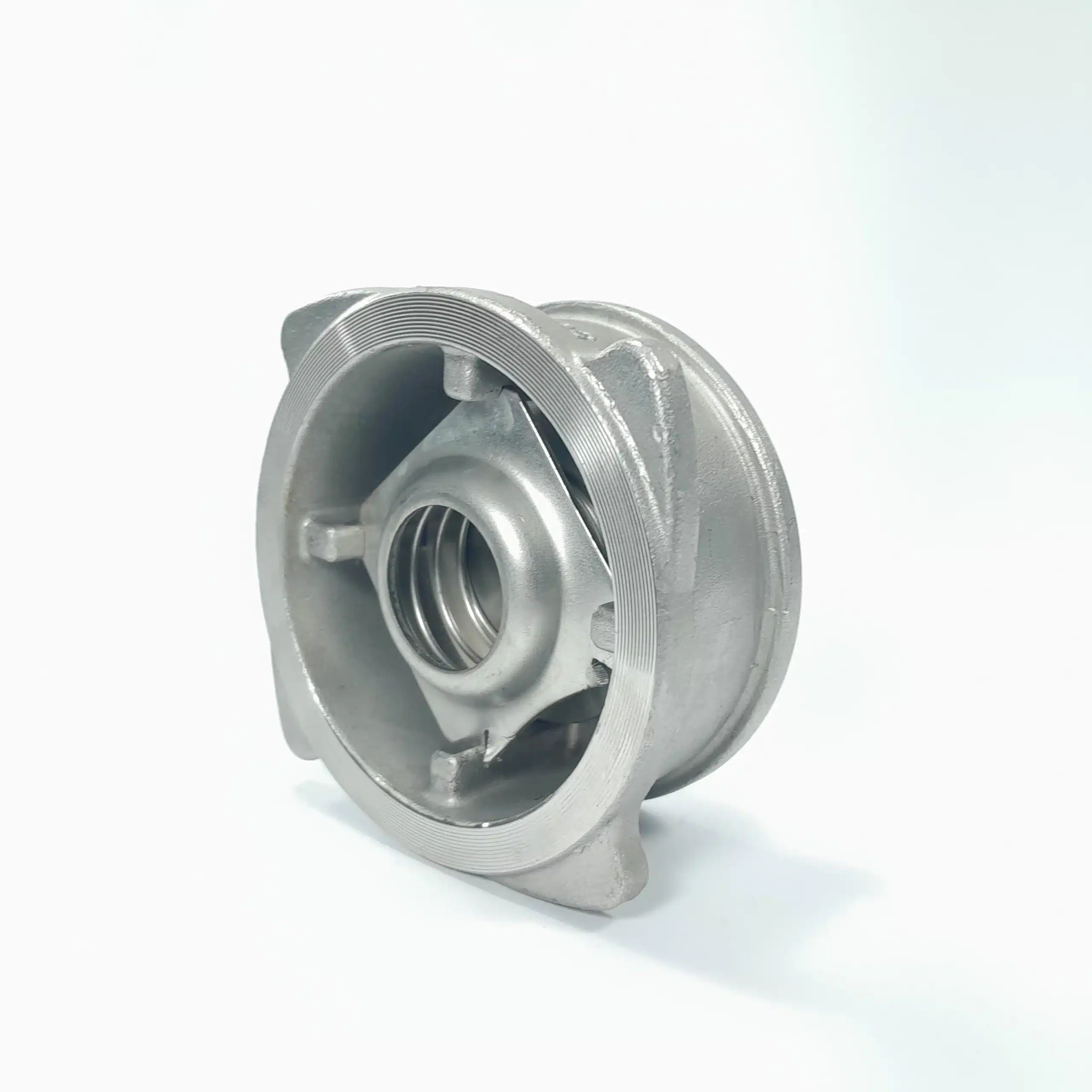

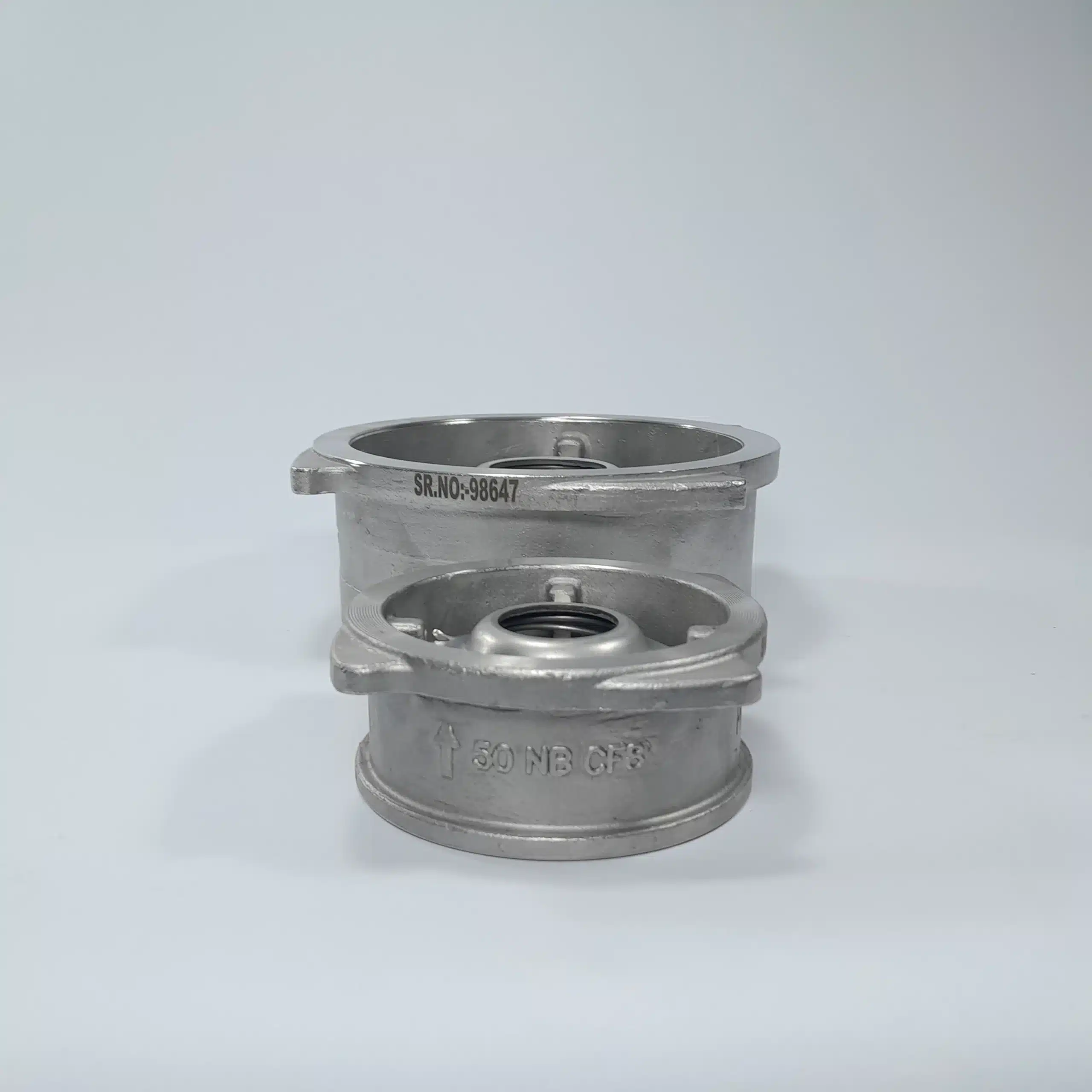

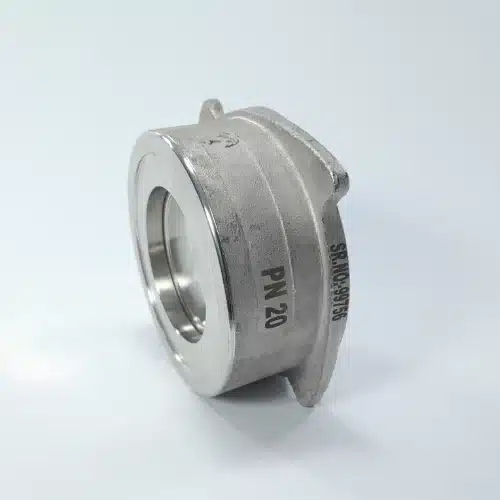

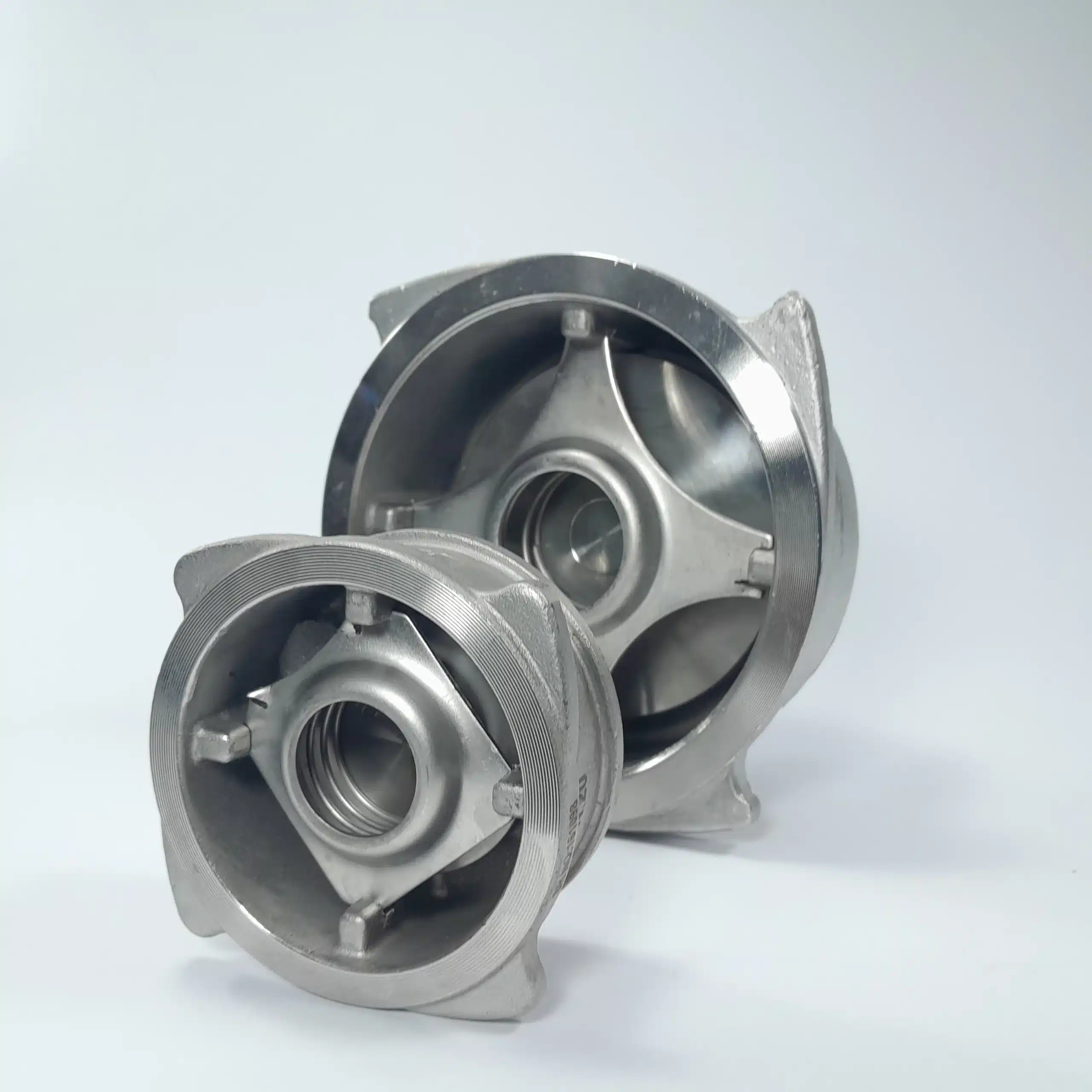

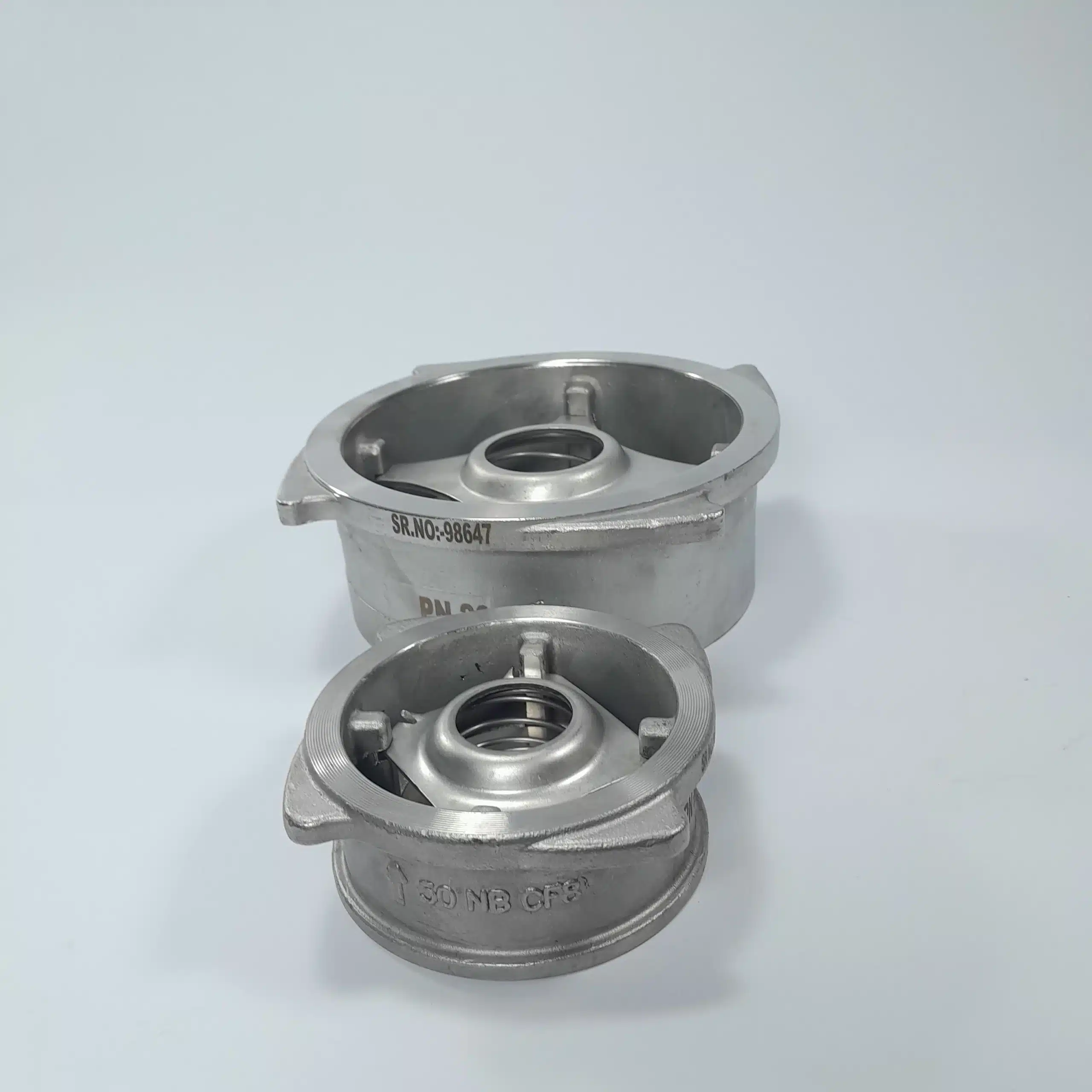

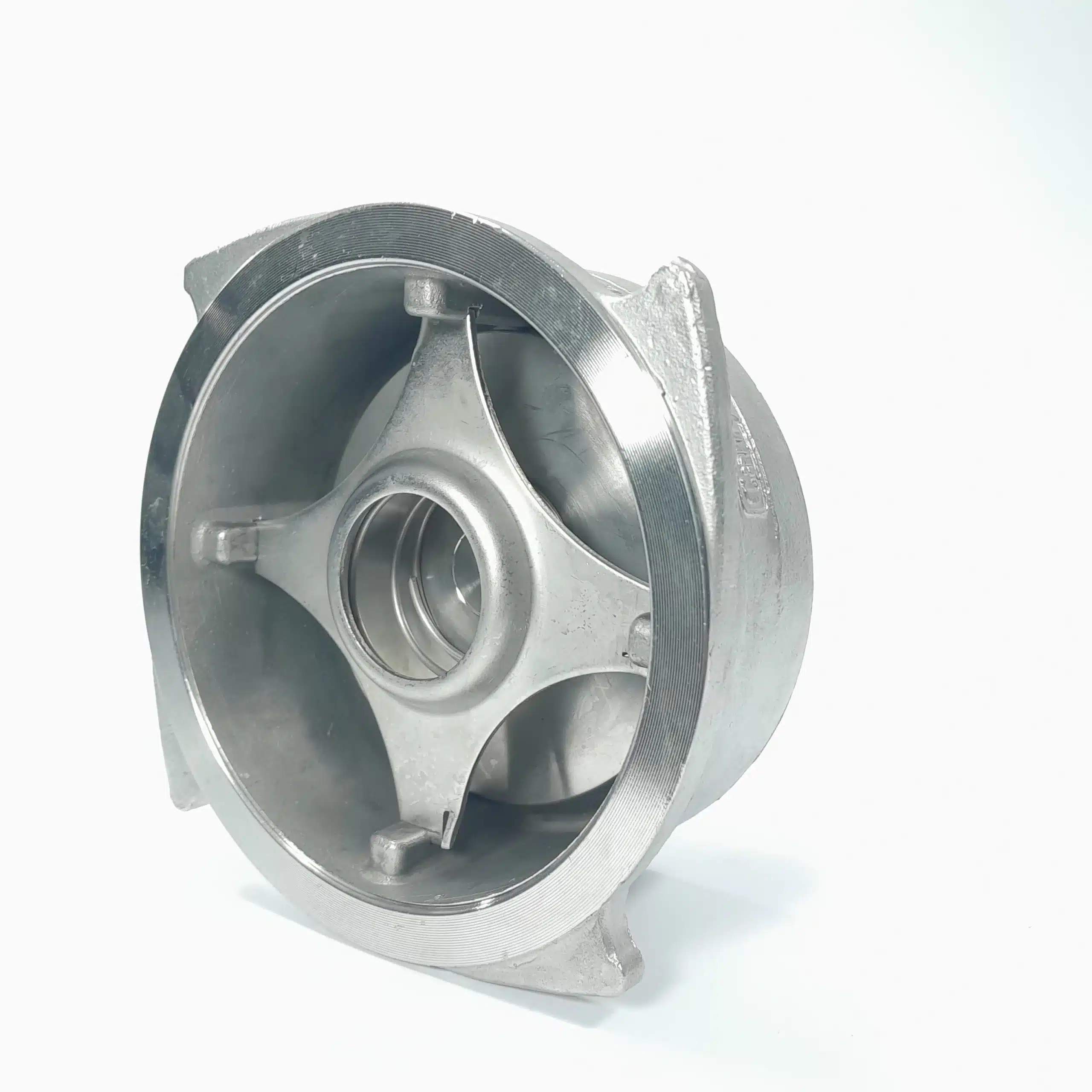

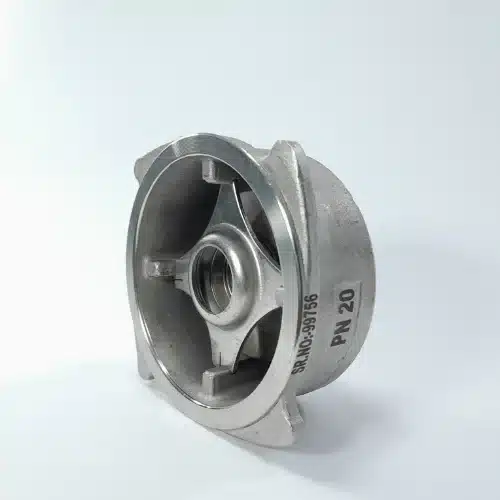

CF8 (SS 304) / CF8M (SS 316) Disc Check Valve / Non Slam NRV Suitable for Temperature 300C, 20 Bar Pressure

This SS 304 (CF8) Ball Valve is designed to provide tight shut-off, smooth operation, and minimal pressure drop. With its robust construction and precision-machined ball mechanism, it ensures leak-proof performance and efficient flow control for liquids and gases.

While selecting valves for flow control systems, industries often also consider complementary products like SS 304 disc check valve and SS 316 disc check valve for preventing backflow, making this valve an essential component in a complete pipeline solution.

Key Features:

• Made from high-quality SS 304 (CF8) for corrosion resistance
• Available in screwed end and flange end connections
• Class 150# pressure rating for industrial applications
• Smooth quarter-turn operation for quick shut-off
• Leak-proof sealing for reliable performance
• Suitable for both liquid and gas applications
• Durable construction for long operational life
• Low maintenance and easy installation

Technical Specifications:

• Material: Stainless Steel SS 304 (CF8)
• Connection Type: Screwed End / Flange End
• Pressure Rating: Class 150#
• Operation: Manual (lever operated)
• Temperature Range: Suitable for standard industrial conditions
• Application Media: Water, oil, gas, chemicals

Applications:

The SS 304 (CF8) Ball Valve is widely used in:

• Chemical and petrochemical industries
• Water treatment and distribution systems
• Oil and gas pipelines
• Pharmaceutical and food processing industries
• HVAC and utility systems

For complete flow control systems, it is often used alongside SS 304 / SS 316 Disc Check Valve solutions to ensure efficient flow regulation and backflow prevention.

Performance Benefits

• Excellent corrosion and chemical resistance
• Strong sealing capability with zero leakage
• Reliable operation under varying pressure conditions
• Long service life with minimal wear and tear
• Versatile installation options (threaded or flanged)

Complementary Valve Solutions

In many industrial setups, this valve is paired with:

• SS 304 disc check valve for standard corrosion-resistant applications
• SS 316 disc check valve for enhanced chemical resistance
• Options to buy stainless steel disc check valve for complete system efficiency

Features:-

1. The Disc Check Valve is an advanced design which gives full flow and occupies very less space than other types of Non-Return Valve.

2. This nrv check valve is available with IBR Certificate in Form I C (for steam applications).

3. DCVs are simple to fit between two pipe flanges.

4. Spring loaded disc to prevent reverse flow in pipelines.

5. Stronger, lighter, and smaller than conventional swing check valves, hence less expensive to install and maintain.

6. The compact design of these nrv check valves flexibly accommodates various types of flange selection.

7. The valves can be fitted in any plane/direction in pipelines.

8. Extremely low operating pressure. Self-Centering type design.

Click here to buy IBR Certified Disc Check Valve.
