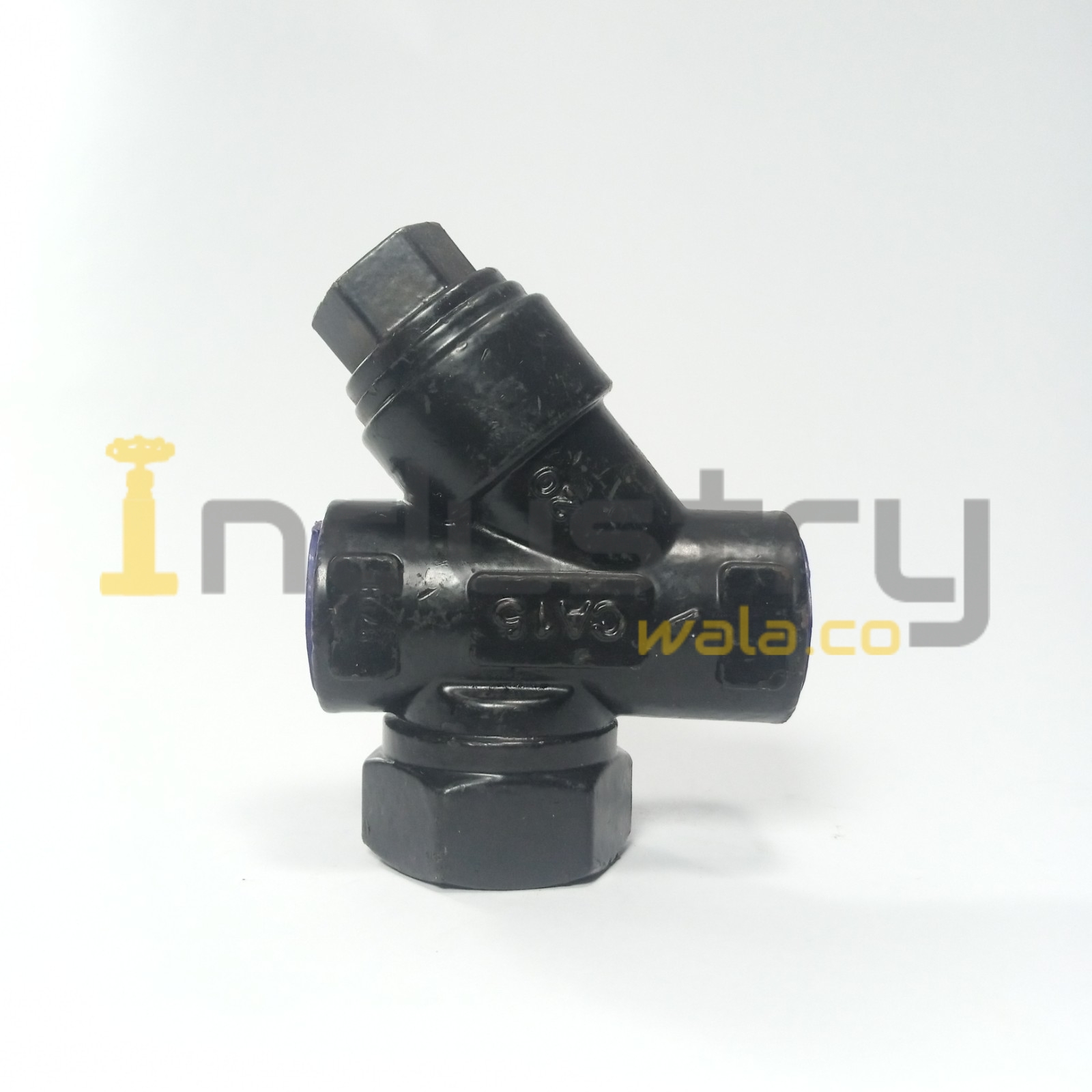

SS Thermodynamic Steam Trap Screwed End
,

SS Thermodynamic Steam Trap Screwed End

(5 customer reviews)

Brand: DRP
ISI Marked, according to IS:920

Click here to buy Bronze Thermodynamic Steam Trap.

Price range: ₹1,075 through ₹1,942 Exclusive GST

What is a Steam Trap?

A steam trap is an automatic valve that holds the steam at the load until it gives up its heat energy and condenses to water (condensate). After the steam condenses to water, the steam trap allows only the condensate to pass, thereby contributing to plant efficiency.
Thermodynamic Steam Trap:

The thermodynamic trap is an extremely robust steam trap with a simple mode of operation. The trap operates by means of the dynamic effect of flash steam as it passes through the trap The only moving part is the disc above the flat face inside the control chamber or cap.
On start-up, incoming pressure raises the disc, and cool condensate plus air is immediately discharged from the inner ring, under the disc, and out through three peripheral outlets.
Hot condensate flowing through the inlet passage into the chamber under the disc drops in pressure and releases flash steam moving at high velocity. This high velocity creates a low pressure area under the disc, drawing it towards its seat.
At the same time, the flash steam pressure builds up inside the chamber above the disc, forcing it down against the incoming condensate until it seats on the inner and outer rings. At this point, the flash steam is trapped in the upper chamber, and the pressure above the disc equals the pressure being applied to the underside of the disc from the inner ring. However, the top of the disc is subject to a greater force than the underside, as it has a greater surface area.
Eventually the trapped pressure in the upper chamber falls as the flash steam condenses. The disc is raised by the now higher condensate pressure and the cycle repeats.

SKU: 1bbd3f409c5d Categories: , Tags: , , , ,
SIZE

, ,

5 reviews for SS Thermodynamic Steam Trap Screwed End

4.8 Rating
1-5 of 5 reviews
  1. Rahul Gawali
    Reviewer

    Fantastic performance! The SS Thermodynamic Steam Trap handles pressure variations beautifully and discharges condensate efficiently. The precision engineering and durable stainless steel body make it perfect for demanding industrial environments.

  2. Snehal More
    Reviewer

    Good quality steam trap with perfect machining and threading. The stainless steel finish is smooth and rust-free even after months of use. Performs consistently in both vertical and horizontal installations. Highly recommended for small and medium plants.

  3. Shantanu Kulkarni
    Reviewer

    This SS thermodynamic trap is one of the best we’ve used. Compact in size yet very efficient. It has been running maintenance-free for months with no leakage or sticking issues. Ideal for replacing older cast iron traps.

  4. Priyanka Bhosale
    Reviewer

    Very sturdy and efficient product. The stainless steel trap performs well even under fluctuating pressure conditions. The disc mechanism works precisely, ensuring consistent discharge without chattering or backflow. Excellent for high-temperature service.

  5. Nitin Khade
    Reviewer

    Excellent steam trap for industrial use! The SS Thermodynamic Steam Trap Screwed End delivers quick and reliable condensate discharge with zero steam loss. The stainless steel body gives it great strength and corrosion resistance. Truly dependable for continuous-duty applications.
