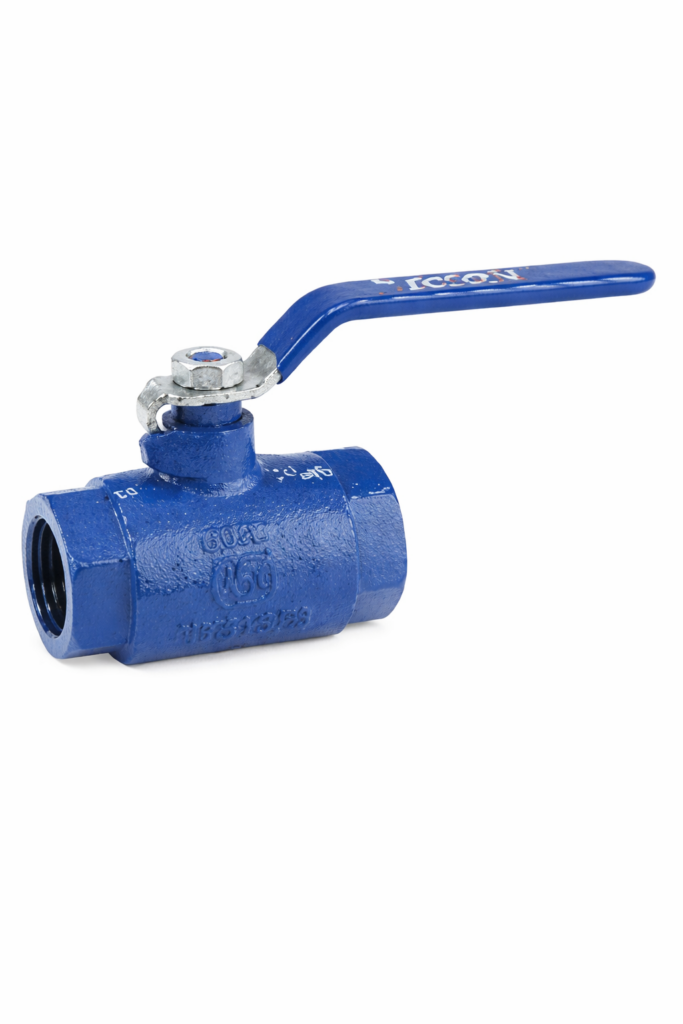

Advanced Kartar Cast Iron Ball Valve PN16 | Lever Operated Leave a comment

When precision flow control meets robust construction, the Kartar Cast Iron Ball Valve PN16 stands as the industry’s preferred choice for reliable on-off service. This comprehensive guide delves into the features, specifications, and applications of these premium ball valves, helping you make an informed decision for your industrial and commercial projects.

Understanding the Kartar Cast Iron Ball Valve

The Kartar Cast Iron Ball Valve represents decades of engineering excellence, combining traditional cast iron durability with modern sealing technology. Unlike butterfly or gate valves, ball valves offer bubble-tight shut-off and minimal pressure drop, making them ideal for critical applications where leak-free performance is non-negotiable.

What is PN16 Rating?

The PN16 designation indicates that the Kartar Cast Iron Ball Valve PN16 is rated for a nominal pressure of 16 bar (approximately 232 PSI or 16 kg/cm²) at room temperature. This pressure rating makes these valves suitable for medium to high-pressure applications across various industries.

Key Features of Kartar Cast Iron Ball Valve PN16

Superior Construction Quality

Body Material: Premium grade cast iron (GG25) ensures excellent strength-to-weight ratio and corrosion resistance.

Ball Design: Chrome-plated brass or stainless steel ball provides smooth operation and extended service life.

Stem: Blow-out proof stem design with anti-static device ensures safe operation.

Seats: PTFE (Teflon) seats offer excellent chemical resistance and low-friction operation.

End Connections: Threaded (BSP/NPT) or flanged ends available to suit different installation requirements.

Lever Operated Mechanism

The Lever Operated Ball Valve design offers several operational advantages:

• Quarter-turn operation (0° to 90°) for quick valve actuation
• Visual position indicator – lever parallel to pipe means open, perpendicular means closed
• Minimal torque requirement for easy manual operation
• Lockable handle for safety and security purposes
• Ergonomic design reduces operator fatigue

Kartar Cast Iron Ball Valve Specifications

Technical Data Sheet

Pressure Rating: PN16 (16 bar / 232 PSI)

Temperature Range:

• Standard: -20°C to +180°C
• With special seals: Up to +200°C

Available Sizes: DN15 (½”), DN20 (¾”), DN25 (1″), DN32 (1¼”), DN40 (1½”), DN50 (2″), DN65 (2½”), DN80 (3″), DN100 (4″), DN125 (5″), DN150 (6″)

Connection Types:

• Screwed (BSP/NPT threads)
• Flanged (PN10/PN16 drilling)
• Socket weld (on request)

Standards Compliance:

• ISO 5211 mounting pad for actuators
• Face-to-face dimensions per DIN 3202
• Flange drilling per DIN 2501/EN 1092

Seat Material Options:

• PTFE (Standard) – Universal application
• RPTFE (Reinforced PTFE) – High-temperature service
• PEEK – Extreme conditions

Ball Material:

• Chrome-plated brass (Standard)
• Stainless steel 316 (Corrosive applications)
• Stainless steel 304 (Food grade applications)

Design Standards

The Kartar cast iron ball valve specifications adhere to international standards:

• Design: API 6D, BS 5351
• Face-to-face: DIN 3202-F4
• Flange: ANSI B16.1, DIN 2501
• Testing: API 598, BS 6755

Applications Across Industries

Industrial Process Control

The Kartar Cast Iron Ball Valve excels in:

• Chemical processing plants
• Petroleum refineries
• Pharmaceutical manufacturing
• Pulp and paper mills
• Power generation facilities

Water and Wastewater Management

Ideal for municipal applications:

• Water treatment plants
• Sewage treatment facilities
• Pump discharge control
• Storage tank isolation

HVAC Systems

Perfect for building services:

• Heating distribution systems
• Cooling water circuits
• Steam line isolation
• Condensate return lines

Marine and Offshore

Reliable performance in harsh environments:

• Ballast systems
• Fire-fighting installations
• Bilge and drainage systems
• Fuel supply lines

Kartar CI Ball Valve Price: Value Analysis

The Kartar CI Ball Valve price represents exceptional value when considering total cost of ownership. Pricing factors include:

Price Determinants

1. Valve Size: Ranges from economical small sizes to larger industrial valves
2. Connection Type: Threaded valves generally cost less than flanged versions
3. Material Upgrades: Stainless steel ball options increase cost
4. Seat Material: Specialty seats like PEEK command premium pricing
5. Quantity: Bulk orders qualify for significant discounts

Cost-Benefit Analysis

When you buy Kartar Cast Iron Ball Valve PN16, consider these long-term savings:

Minimal Maintenance: Ball valves require less frequent servicing compared to gate valves

Energy Efficiency: Full bore design minimizes pressure drop and pumping costs

Extended Service Life: Robust construction ensures 20+ years of reliable operation

Reduced Downtime: Quick quarter-turn operation speeds up process control

Lower Replacement Costs: Durable materials mean fewer valve replacements

Why Kartar CI Ball Valves Stand Out

Performance Advantages

The Best cast iron ball valve PN16 designation goes to Kartar for several reasons:

Zero Leakage: PTFE seats provide bubble-tight shut-off

Bi-directional Flow: Operates equally well in both flow directions

Full Bore Design: Unrestricted flow path minimizes pressure loss

Corrosion Resistance: Protective coatings extend valve life in aggressive environments

Fire-Safe Design: Optional fire-safe certification available for critical applications

Quality Assurance

Order Kartar Cast Iron Ball Valve products with confidence:

• ISO 9001:2015 certified manufacturing
• 100% factory pressure testing
• Material test certificates provided
• Traceability for all components
• Comprehensive quality documentation

Where to Buy Kartar Cast Iron Ball Valve PN16

Authorized Distribution Network

Purchase Kartar CI Ball Valve through verified channels:

Distributor Benefits:

• Genuine products with valid warranties
• Technical support and sizing assistance
• Quick availability and delivery
• Competitive pricing structures

Online Industrial Suppliers

Modern purchasing made easy when you shop Kartar Cast Iron Ball Valve online:

• Detailed product catalogs with specifications
• Secure payment options
• Doorstep delivery services
• Customer reviews and ratings
• Easy return and exchange policies

Direct Factory Orders

For large projects, get Kartar Ball Valve PN16 wholesale pricing:

• Direct communication with manufacturer
• Custom specifications available
• Bulk order discounts
• Engineering support included
• Factory inspection facility

Installation Best Practices

Pre-Installation Checklist

Before installing your Kartar Cast Iron Ball Valve PN16:

1. Verify Specifications: Confirm size, pressure rating, and connection type
2. Inspect Condition: Check for shipping damage
3. Clean Internals: Flush pipeline to remove debris
4. Position Orientation: Ensure adequate clearance for handle operation
5. Support Requirements: Provide proper pipe support to avoid stress on valve body

Installation Procedure

Threaded Connections:

• Use appropriate thread sealant (PTFE tape or pipe dope)
• Avoid over-tightening which can crack the body
• Support valve body while tightening connections
• Leave handle in open position during installation

Flanged Connections:

• Use proper gaskets suitable for service conditions
• Follow star pattern bolt tightening sequence
• Torque bolts to manufacturer specifications
• Cycle valve several times before pressurizing

Commissioning Steps

1. Visual Inspection: Check all connections for proper installation
2. Operation Test: Cycle valve multiple times ensuring smooth operation
3. Pressure Test: Gradually pressurize system checking for leaks
4. Flow Test: Verify full flow capacity and control characteristics

Maintenance Guidelines

Routine Maintenance Schedule

Monthly Checks:

• Operate valve through full stroke
• Check for external leakage
• Verify smooth handle operation
• Inspect for corrosion or damage

Quarterly Service:

• Lubricate stem if applicable
• Check packing gland tightness
• Verify seat integrity
• Test under full operating conditions

Annual Overhaul:

• Complete valve inspection
• Replace worn seals and seats
• Check ball surface condition
• Pressure test after reassembly

Troubleshooting Guide

Handle Difficult to Operate:

• Check for pipeline stress on valve body
• Verify ball not damaged or corroded
• Lubricate stem bearings
• Inspect for seat debris

External Leakage:

• Tighten packing gland nuts
• Replace packing if worn
• Check stem for damage

Internal Leakage:

• Inspect seats for wear or damage
• Check ball surface for scratches
• Verify proper valve closure
• Replace sealing components if necessary

Selecting the Right Valve for Your Application

When you’re ready to order Kartar Ball Valve PN16, consider:

Application Parameters

1. Fluid Type: Water, steam, oil, gas, or chemicals
2. Operating Pressure: Ensure PN16 rating is adequate
3. Temperature Range: Select appropriate seat materials
4. Flow Requirements: Choose full bore for minimal pressure drop
5. Frequency of Operation: Consider actuator-ready options for frequent cycling

Sizing Considerations

Flow Velocity: Maintain between 5-15 ft/sec for optimal performance

Pressure Drop: Use full bore design to minimize losses

Cv Values: Consult Kartar cast iron ball valve specifications for flow coefficients

Conclusion

The Kartar Cast Iron Ball Valve represents the pinnacle of on-off valve technology, combining robust cast iron construction with precision ball valve design. Whether you need reliable isolation for industrial processes, water treatment applications, or HVAC systems, these Lever Operated Ball Valves deliver uncompromising performance.

With competitive Kartar CI Ball Valve price points, comprehensive specifications, and proven reliability, it’s no wonder engineers worldwide buy Kartar Cast Iron Ball Valve PN16 for their most demanding applications. The Best cast iron ball valve PN16 option in the market offers exceptional value, long service life, and peace of mind.

Ready to experience the Kartar difference? Purchase Kartar Cast Iron Ball Valve products today from authorized distributors and join thousands of satisfied customers who trust Kartar for critical flow control applications.
