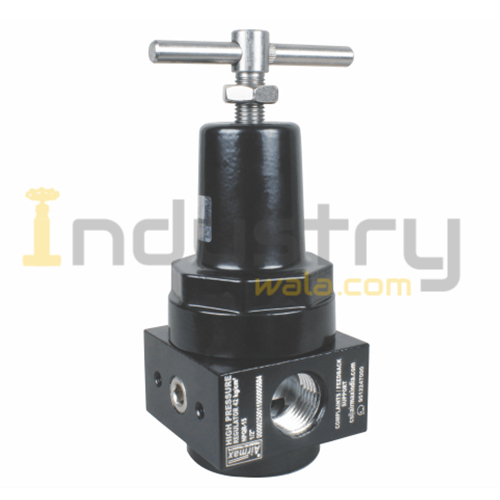

Airmax High Pressure Air Regulator 42 Kg/cm2

The Airmax High Pressure Air Regulator 42 kg/cm² is a robust and precision-engineered device designed to control and maintain consistent air pressure in high-pressure pneumatic systems. Built for industrial applications, this Airmax air pressure regulator ensures stable output pressure, improved system efficiency, and protection of downstream equipment.

This high pressure air regulator 42 kg/cm² is ideal for applications where accurate pressure control and reliability are critical.

Overview-

The Airmax High Pressure Air Regulator is designed to regulate compressed air from high inlet pressure to a controlled and stable outlet pressure. Its heavy-duty construction and precision adjustment mechanism make it suitable for demanding industrial environments.

Equipped with a lockable rotary “T” type knob, this regulator allows easy pressure adjustment while preventing accidental changes during operation.

Key Features:

• High pressure regulation up to 42 kg/cm²
• Durable and heavy-duty industrial design
• Lockable rotary “T” type adjustment knob
• High flow capacity for efficient air supply
• Stable and precise pressure control
• Compact and easy-to-install design
• Suitable for panel and inline mounting
• Reliable performance in continuous operation

Technical Specifications:-

• Product Type: High Pressure Air Regulator
• Brand: Airmax
• Model: HPOR Series
• Inlet Pressure: Up to 42 kg/cm²
• Outlet Pressure: Up to 30 kg/cm²
• Connection Size: 1/4″, 1/2″, 3/4″, 1″ BSP
• Temperature Range: Up to 50°C
• Media: Compressed Air
• Body Material: Aluminum Die Cast
• Seals: NBR

Working Principle:

The Airmax High Pressure Air Regulator works by controlling the downstream pressure using an internal spring and diaphragm mechanism:

• High-pressure air enters the regulator
• The adjustment knob compresses or releases the spring
• The valve opens or closes accordingly to regulate pressure
• A stable and consistent outlet pressure is maintained

This ensures smooth and reliable operation of pneumatic systems.

Applications:

The Airmax air pressure regulator is widely used in:

• Industrial pneumatic systems
• Air compressors and distribution lines
• Manufacturing and automation units
• Process control applications
• High-pressure air handling systems

Performance Benefits:

• Maintains consistent and accurate air pressure
• Protects downstream equipment from pressure fluctuations
• Enhances system efficiency and reliability
• Reduces wear and maintenance costs
• Ensures safe operation in high-pressure environments

The Airmax High Pressure Air Regulator 42 kg/cm² is a dependable solution for controlling air pressure in demanding industrial systems. With its durable construction, precise adjustment, and high-pressure handling capability, it ensures optimal performance and long-term reliability.

If you are planning to buy Airmax high pressure air regulator, this Airmax air pressure regulator delivers efficiency, durability, and precise control for industrial applications.
