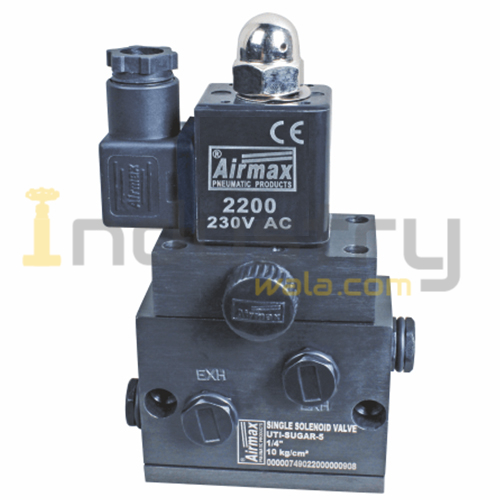

Airmax Poppet Type Solenoid Valve UTI-Sugar 5/2 Way

What is a Poppet Solenoid Valve?

Poppet valves are used in pneumatic systems. They are commonly controlled through solenoids and can be set to be either normally-closed or normally-open in their de-energized states. They are also used as check valves to provide one-way flow and as relief valves to guard against overpressure. They primarily reside alongside spool valves as another option for pneumatic systems. Engine valves are also sometimes referred to as poppet valves.

Poppet Valve Design

A poppet valve uses a rounded stem tip or ball (poppet) to seal shut a passageway by pressing the poppet onto a seat, usually with a combination of fluid pressure and spring force. This is the valve in its normally-closed state. The valve is opened manually, mechanically (as with a limit switch), electrically (via solenoid), or pneumatically (with pilot air), pushing a stem that draws the poppet off its seat, allowing fluid to flow. A common design is a three-way, two-position valve that allows fluid to flow into a cylinder, for example, when the valve is actuated and expels the emitted fluid through an exhaust port or into a reservoir when the valve is closed.

A spool valve instead uses a cylindrical element usually fitted with O-rings that moves linearly within a bored valve-body. As the spool shifts, the O-rings alternately open and close ports, allowing for fluid movement among the valve ports. Spool valves are described as being balanced, meaning that the spool remains in a position until an external force (manual operator, solenoid, etc.) acts upon it. Some poppet valves are available as balanced designs.

Both valve types are used in pneumatic and hydraulic circuits. Poppet valves tend to predominate in pneumatic circuits and spool valves tend to be used heavily in hydraulic systems. A primary reason for this is that the actuating force needed to open a poppet valve is greater than that required for an equivalent size spool valve and this becomes a limiting factor with the higher pressures of hydraulic systems. The poppet valve meets the system pressure directly while the spool valve moves at a right angle to it.

Poppet valves offer several advantages over spool valves, however. Among them, higher flow rates from smaller packages, closed crossovers, faster response times, longer lives due to lower friction, less susceptibility to contaminant damage, and lower costs.

Crossover refers to the period in which one port opens before another has fully closed. This is an important consideration when precise control is needed and here the poppet valve is the better choice. Response time is faster with poppet valves as a result of shorter movements and greater flow area when the valve is open, but response is not as consistent as that of spool valves where pressures fluctuate.

Because a poppet valve relies on system pressure to close, their use is not recommended when downstream holding functions are needed or in vacuum applications.

Spool valves can be configured in multi-way arrangements as in selector valves, for instance. Four-way, three-position spool valves are common. Three-way poppet valves can be used in combination to duplicate the action of four-way spool valves.

Poppet valves used as check valves may or may not incorporate springs, depending on the design. Poppet style relief valves generally use springs and may be pilot actuated.

Poppet Solenoid Valve Applications

Poppet valves are commonly employed for load holding and load lowering with single-acting cylinders. They are used as unloading valves in positive displacement pumps. They serve as relief valves in air tanks. A poppet valve provides a convenient method of preventing flow reversal in a fluid circuit or as a way to prevent contamination of different media in mixing systems.

Poppet Solenoid Valve Considerations

Poppet valves require no lubrication which can be a plus in selecting valves in which chemical compatibility with various fluids is a consideration. This also makes them useful for systems that deliver medical gases—or for any system in which clean, dry air is needed.

FAQs – Airmax Poppet Type Solenoid Valve UTI-Sugar 5/2 Way

What is the main function of the Airmax UTI-Sugar 5/2 Way Poppet Type Solenoid?
The Airmax UTI-Sugar 5/2 Way Poppet Type Solenoid controls the direction of compressed air flow, and the Poppet Type Solenoid design ensures fast response, tight sealing, and reliable operation in pneumatic automation systems.

How does the poppet mechanism improve efficiency in a Poppet Type Solenoid valve?
The poppet mechanism enhances sealing performance and switching speed, and a Poppet Type Solenoid helps minimize air leakage while maintaining consistent air flow control in industrial applications.

Is the Airmax UTI-Sugar 5/2 Way Poppet Type Solenoid suitable for industrial environments?
Yes, the Airmax UTI-Sugar 5/2 Way Poppet Type Solenoid is engineered for demanding industrial use, and the Poppet Type Solenoid performs reliably in automation, machinery, and sugar processing applications.

Can the Airmax UTI-Sugar 5/2 Way Poppet Type Solenoid be installed in compact pneumatic systems?
Yes, the compact structure of the Poppet Type Solenoid allows easy installation in limited spaces, and the Poppet Type Solenoid ensures dependable air control with low maintenance requirements.
