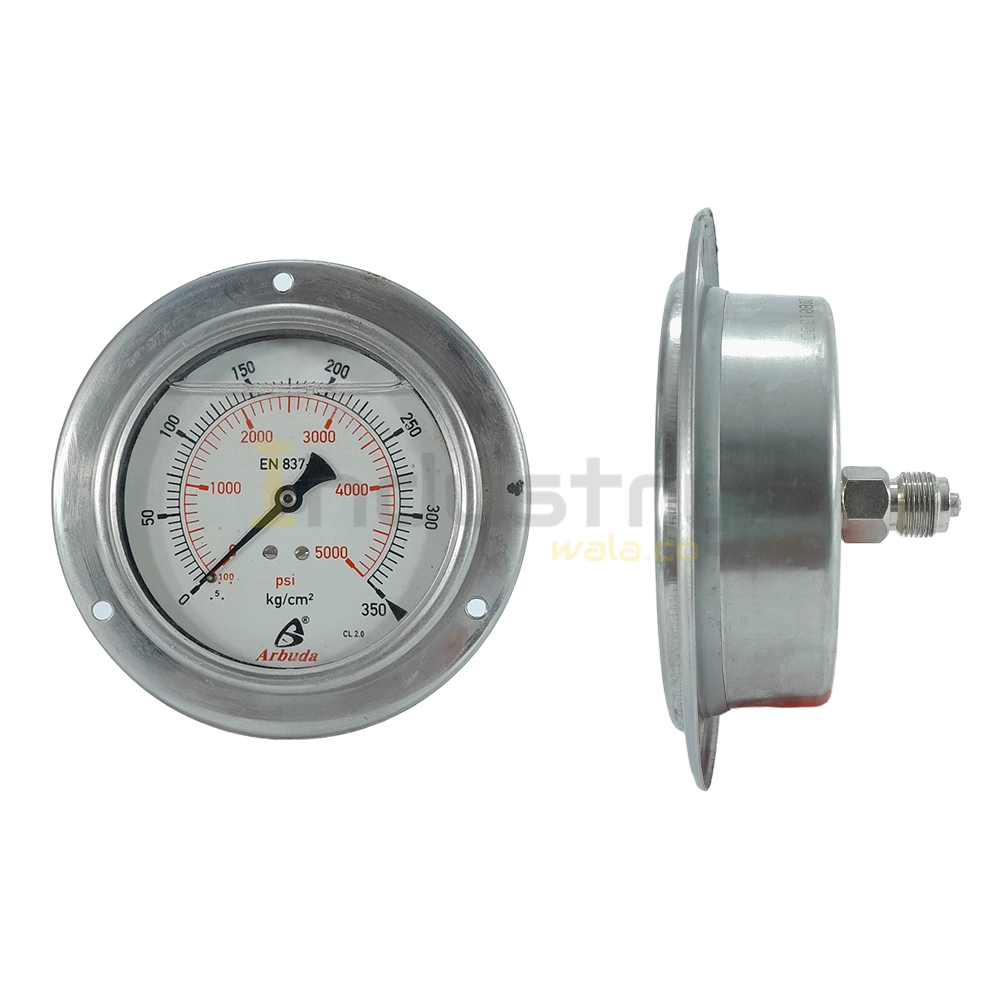

Pressure Gauge Bourdon Type All SS 4″ Dial Back Connection
Brand : Arbuda
Comes with Test and Calibration Certificate
Thread Connection Size : 3/8″
Case : AISI SS 304 Crimped Bezel
Bourdon : SS 316L
Protection : IP 68
Accuracy : +-1.6% of F.S
Ambient Temperature : -25 C to +65 C
Operating Pressure : 75% of Scale Value
Over Pressure Limit : upto 115% of Max. Scale Value
Price range: ₹899 through ₹1,250 Exclusive GST
Brand:- Arbuda
Special Features:-
1) Comes with Test and calibration certificate
2) Stanless Steel Case and Brass measuring system
3) Standarad followed in general EN 837-1
Specifications:-
Accuracy :- ±1.6% of F.S
Ambient Temperature : – 25°C to +65°C
Process Temperatire : Max 180°C without Glycerin filled if Glycerin Filled, max temperature 100°C
Operating Pressure : 75% of Scale Value
Over Pressure Limit : Upto 100 Bar : 125% of Max. Scale Value
Over 100 Bar : 115% of Max. Scale Value
Protection : IP 68
Case and Bezel : AISI 304 SS Crimped Bezel”
| Pressure Range | 0 – 7 KG/cm2, 0 – 10 KG/cm2, 0 – 14 KG/cm2, 0 – 70 KG/cm2, 0 – 106 KG/cm2, 0 – 140 KG/cm2, 0 – 280 KG/cm2, 0 – 350 KG/cm2, 0 – 600 KG/cm2, 0 – 700 KG/cm2 |
|---|---|
| Glycerin Filling |
