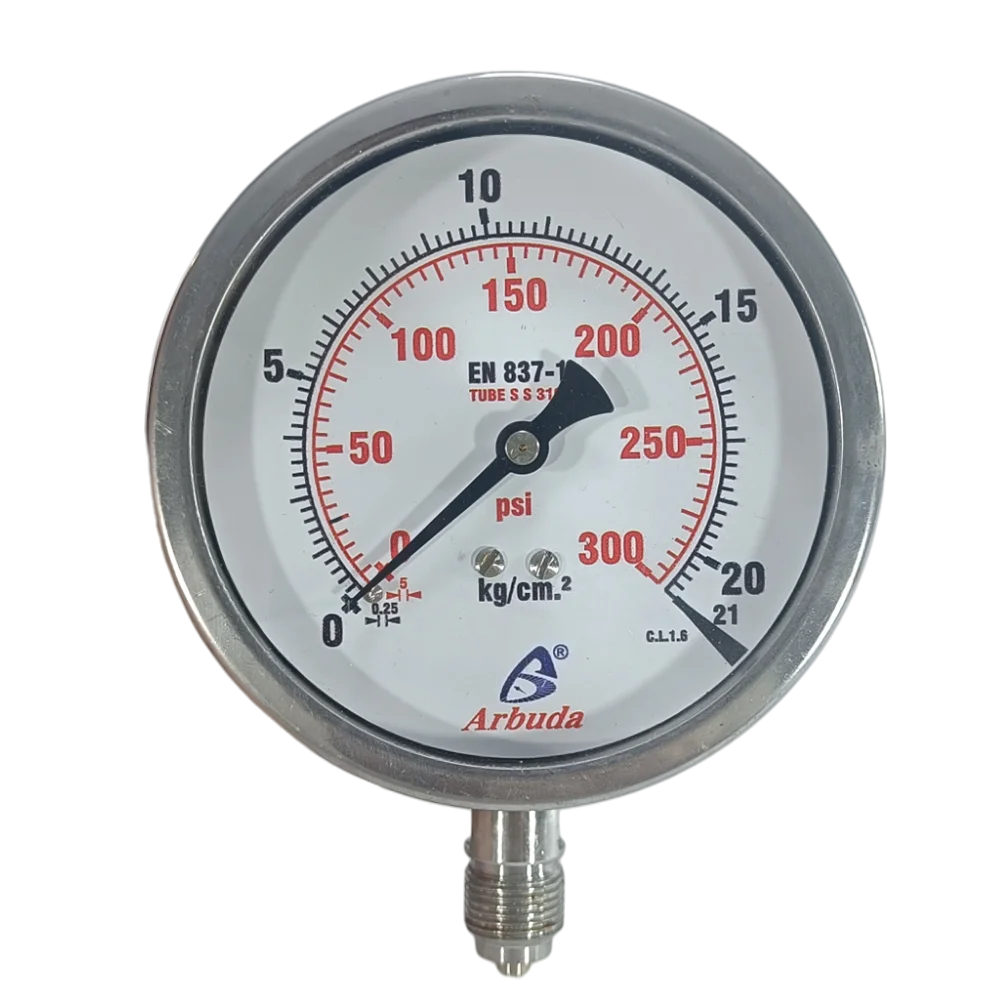

Pressure Gauge Bourdon Type All SS 4″ Dial Bottom Connection

The Pressure Gauge Bourdon Type All SS 4″ Dial Bottom Connection is a high-precision instrument designed for accurate pressure measurement in demanding industrial environments. Manufactured with all stainless steel construction, this gauge ensures excellent corrosion resistance, durability, and long service life.

The Bourdon Type All SS 4″ Dial Bottom Connection gauge is ideal for applications requiring reliable performance under high pressure, vibration, and harsh operating conditions.

The Pressure Gauge Bourdon Type All SS 4″ operates on the proven Bourdon tube mechanism, delivering precise and consistent pressure readings. The bottom connection design allows easy installation in pipelines and equipment where vertical mounting is required.

Its robust stainless steel construction and clear 4″ dial ensure both durability and easy readability in industrial settings.

Key Features:

• All stainless steel construction for corrosion resistance
• Bourdon tube mechanism for accurate pressure measurement
• 4″ dial size for clear and easy reading
• Bottom connection for convenient installation
• Rugged design suitable for industrial environments
• High reliability with long operational life
• Suitable for liquid and gaseous media

Technical Specifications:-

• Type: Pressure Gauge Bourdon Type All SS 4″
• Dial Size: 4″ (100 mm)
• Connection Type: Bottom Connection
• Material: Stainless Steel (Case & Wetted Parts)
• Accuracy: ±1.6% of full scale
• Protection: IP68
• Ambient Temperature: -25°C to +65°C
• Process Temperature: Up to 300°C
• Window: Acrylic / Glass
• Application Media: Air, gas, oil, and other compatible fluids

Applications:

The Pressure Gauge Bourdon Type All SS 4″ Dial Bottom Connection is widely used in:

• Pumps and compressors
• Hydraulic systems
• Chemical and petrochemical industries
• Process industries
• Power plants and industrial machinery

Performance Benefits:

• Accurate and stable pressure readings
• Durable construction for harsh environments
• Long service life with minimal maintenance
• Easy installation and operation
• Reliable performance under varying pressure conditions

The Pressure Gauge Bourdon Type All SS 4″ Dial Bottom Connection is a dependable solution for industrial pressure measurement. With its robust stainless steel construction, precise Bourdon mechanism, and user-friendly design, it ensures consistent and reliable performance.

The Pressure Gauge Bourdon Type All SS 4″ is an ideal choice for industries requiring accuracy, durability, and long-term reliability in pressure monitoring applications.

FAQs – Pressure Gauge Bourdon Type All SS 4″ Dial Bottom Connection:

1. How does a Pressure Gauge Bourdon Type provide accurate readings for industrial systems?
A Pressure Gauge Bourdon Type ensures precise pressure measurement with a durable SS construction, ideal for monitoring liquids and gases in industrial applications.

2. Is the Pressure Gauge Bourdon Type suitable for high-pressure and corrosive environments?
Yes, the Pressure Gauge Bourdon Type features all SS construction, offering excellent resistance to corrosion and reliable performance under high-pressure conditions.

3. Can the Pressure Gauge Bourdon Type help prevent equipment damage and enhance safety?
A Pressure Gauge Bourdon Type allows operators to monitor system pressure accurately, helping prevent overpressure situations and ensuring safe operation.

4. Is the Pressure Gauge Bourdon Type easy to install in piping systems?
Yes, the Pressure Gauge Bourdon Type has a compact design and bottom connection, allowing straightforward installation even in tight or restricted piping layouts.

5. What maintenance is required for a Pressure Gauge Bourdon Type?
The Pressure Gauge Bourdon Type is low-maintenance due to its robust SS construction. Routine inspection and calibration ensure long-lasting accuracy and reliability.
